Box Integration

  • Updated

Box is a cloud storage solution and is used to manage, share, and collaborate on digital files. Box can store most file types and enables access for individuals anywhere across multiple platforms

By integrating your Bynder portal and Box account, you are able to seamlessly connect assets between the two by automatically moving assets in your Box account to Bynder, without downloading from Box and re-uploading to Bynder. Non-Bynder users will now be able add assets to a folder in Box to have them automatically uploaded to your DAM.

How to enable the Box Integration?

Contact your Customer Success Manager to learn more about enabling the Box Integration.

How to set up the Box integration?

  1. Log in to Bynder and navigate tobrand_guidelines_image_settings.png Settings > Advanced settings> Portal settings.

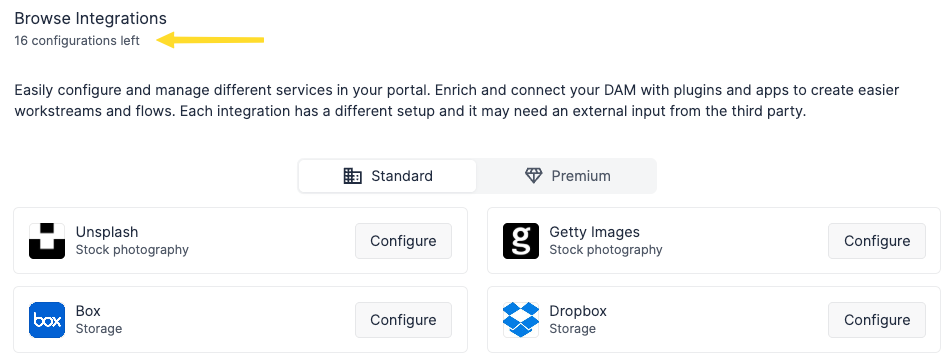

  2. Click Browse Integrations in the left sidebar then click Configure in the Box section.

  3. Enter a Name for this configuration.

  4. If you've already configured a Bynder connection, it will be selected. If not, select New authentication to add your Bynder credentials:

    • Your authentication name: Enter a name for the authentication.

    • Domain: Enter your unique domain by copying the URL of your Bynder portal (including https://).

  5. Click Create, then Next.

  6. Select New authentication and then Create to log into your box account.

  7. Click Grant access to Box to confirm you agree to grant Tray.IO access to complete the Box integration.
    • is an API integration platform that provides the connection between Box and Bynder.
  8. Box Folder URL: Navigate to your Box account and copy the URL of the folder that you would like to sync with Bynder. Navigate back to Bynder and paste into the Box Folder URL section.

  9. Include subfolders?: If you’d like for all assets uploaded to the selected folder’s subfolders to upload to Bynder, check the box. Be aware that large folder structures will slow the total time to synchronize assets from Box. If your folder structure is very large, consider creating multiple Box connections.

    • If you leave the box unchecked, then only assets uploaded to the selected folder will be synced to Bynder.

  10. Metadata Mapping: You can automatically add certain metaproperty values to all assets that are synced from Box. For example, you can set a Source metaproperty to be Box for all assets uploaded via the integration.

    • Click Choose an option under Bynder Metaproperty and select a field from the dropdown.
      In the Value section, enter the option that the synced assets should be tagged with.

    • Click Add a new mapping to add additional metaproperties.

  11. Click Next to review the information, then click Finish.


If you would like to connect more than one Box folder, you will need to configure a new Box workflow for each account you would like to set up.

How to use the integration

After configuration, all selected assets in your Box account will upload to your portal’s Asset Bank after about 2 hours. Moving forward, any assets added or moved to the selected folder (or subfolders) in the configured Box account will automatically be uploaded to the DAM after about 2 hours.

If you delete an asset from your Box account, it will not automatically be reuploaded to your Bynder DAM. If you delete a Box asset from your Bynder DAM it will remain in your Box account.

Edit the integration

If you would like to disable the integration, update your synced folder, or edit your Box credentials, you can edit the configuration.

  1. Navigate to Settings > Advanced settings > Portal settings.
  2. Click Active Integrations in the left sidebar, then Edit in the section of the connection that you would like to update.
  3. Make your changes, then click Save.


Which file types are supported?

Any supported file type can be added to your portal. For a complete list of file types click here.

What happens to the asset if I delete it from my Bynder portal (or visa versa)?

If you delete an asset from your Bynder portal the asset will remain in your Box account, and if you delete an asset from your Box account it will remain in your Bynder portal.

Does the integration support versions?

At this time it does not support versioning.

Is a specific Box account type required for the integration?

No, any account type will work for the integration.

What if we have multiple Box accounts?

Each Box account will need to be configured and connected. There is not currently a limit to how many accounts that you can configure.
